LGSeries centrifugal scraper thin film evaporator
Overview
The scraper thin film evaporator is a type of evaporation and distillation equipment that uses high-speed rotation to distribute liquid into a uniform thin film for evaporation or distillation. It can also perform unit operations such as deodorization, defoaming reactions, heating, and cooling. It can be widely used in Chinese and Western pharmaceutical, food, light industry, petroleum, chemical, environmental protection and other industries.
Performance and features
This equipment uses a centrifugal sliding groove rotor, which is a structural evaporator. It can form a thin film even when the flow rate is very small. The sludge in the treatment liquid attached to the inner wall surface of the cylinder evaporation section can be quickly moved by the movable plate. Compared with the scraper evaporator with a fixed gap, the evaporation capacity can be increased.40%- 69%, it has the following performance and features:
1, high heat transfer coefficient value, large evaporation capacity, evaporation intensity can reach200kg/m2 ·hr, high thermal efficiency.
2, the material heating time is short, about seconds.10seconds, and works under important vacuum conditions, which is beneficial to heat-sensitive materials, keeping various components from decomposing and ensuring product quality.
3, adapts to a wide range of viscosity changes, can handle both high and low viscosity materials, and the material viscosity can be as high as1010,000 centipoise (CP).
4. Changing the rotation direction of the scraper groove can adjust the processing time of the material in the evaporator.
5, The inner shell of the evaporation section has been precision bored and polished, and the surface is not prone to coking and scaling.
6, easy to operate, easy to adjust product indicators, and can be automatically controlled for continuous production under closed conditions.
7, The equipment occupies a small area, has a simple structure, is easy to maintain and clean.

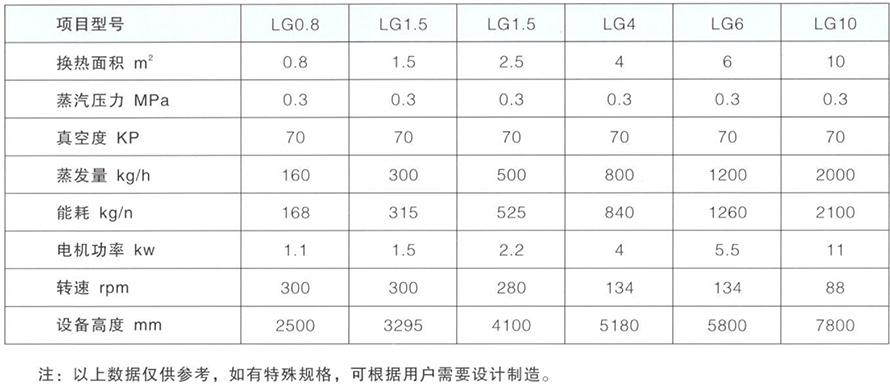

Technical parameters
