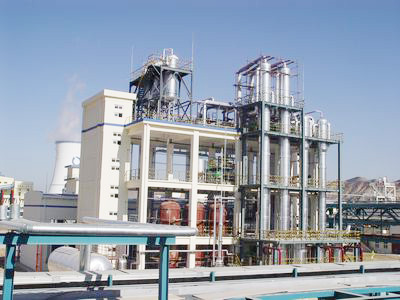

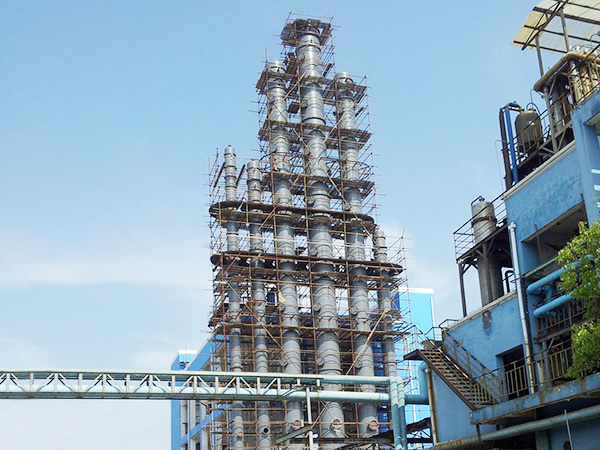

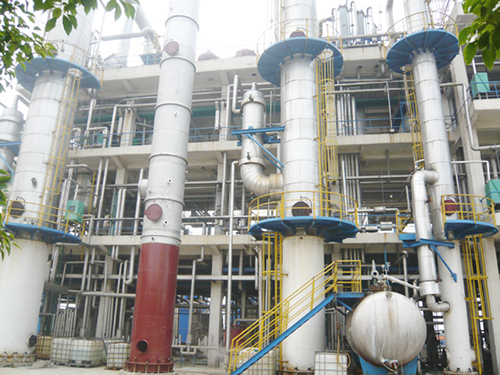

The distillation tower is a tower-type vapor-liquid contact device for distillation, also called a distillation tower. There are two main types: plate tower and packed tower. According to the operation mode, it can be divided into continuous distillation tower and batch distillation tower. According to the operating pressure, it can be divided into three types: normal pressure, pressurized and reduced pressure. The basic principle of distillation is to partially vaporize and partially condense a liquid mixture multiple times,Taking advantage of the different volatilities of each component (relative volatility,α) characteristics to achieve unit operations for separation purposes. Distillation can be divided into simple distillation, flash distillation, rectification and special distillation according to its operation method.

       distillation tower distillation tower-Suitable for concentration and recovery of various solvents:
       1, alcohol recovery system
       Scope of application: recovery and concentration of low-concentration methanol, ethanol, acetone and other solvents.
       2, Anhydrous alcohol recovery system:
       Recovery and concentration of solvents that can create azeotropes with water, such as isopropyl alcohol and acetic acid.
       3,DMF DMACrecycling system
       N,N-2Methyl formamide (DMF),N,NdimethylacetamideDMAC,甲苯等溶剂的的回收,提浓。
       4, Acetic acid recovery system
       Scope of application: Suitable for esters and solvents with low water solubility.
       5, biodiesel decolorization+Slag removal system:
       Raw liquid to be treated: Biodiesel, also known as fatty acid methyl ester, refers to—Various animal and vegetable oils and fats are used as raw materials, and are modified through cross-esterification reaction with low-carbon alcohols such as methanol or ethanol to turn them into a fuel that can be used in internal combustion engines.
       Products that can be obtained after treatment: light components+golden diesel+Residual oil
       6, waste oil decolorization+Slag removal system:
       Raw liquid to be processed: Waste oil includes emulsified oil, transformer oil, gear oil, hydraulic oil and waste engine oil (black oil), etc.
       Products obtained after treatment: Light oil+golden diesel/base oil+Residual oil
       7, Self-polymerizing mixed solvent recovery system
       MCPDMethylcyclopentadiene dimer+MMTMethylcyclopentadienylmanganesetricarbonyl +
       MCPMethylcyclopentadiene monomer+DMCDiethylene glycol dimethyl ether+Resin mixed solvent
       The above distillation tower-The distillation tower recovery system can realize intermittent or continuous recovery, and the raw liquid processing capacity can be adapted to:0.5t/hto500t/h.
