Main purpose
       This device is suitable for dilute alcohol recovery in pharmaceutical, food, light industry, chemical and other industries. It is also suitable for the distillation of other solvents such as formaldehyde. According to the needs of the user, this device can be30(°C) dilute alcohol is distilled to90(°C)~95(°C)For alcohol, no matter how high the alcohol content of the finished product is, the reflux ratio can be increased, but the output will be reduced accordingly.

Device features
       This device uses high-efficiency metal stainless steel fillers. The distillation tower is made of stainless steel, which prevents iron filings from clogging the tower packing and extends the service life of the device. All equipment parts in this device that come into contact with alcohol, such as condensers, thermobaric tanks, cooling coils, etc., are all made of stainless steel to ensure that the finished alcohol is not contaminated. The steaming kettle adopts detachableUtype heating tube, which can be removed during maintenanceUThe heating tube is pulled out of the kettle to facilitate cleaning of the heating outer wall and the distillation kettle wall. This device can be used for intermittent production, semi-continuous or continuous production.

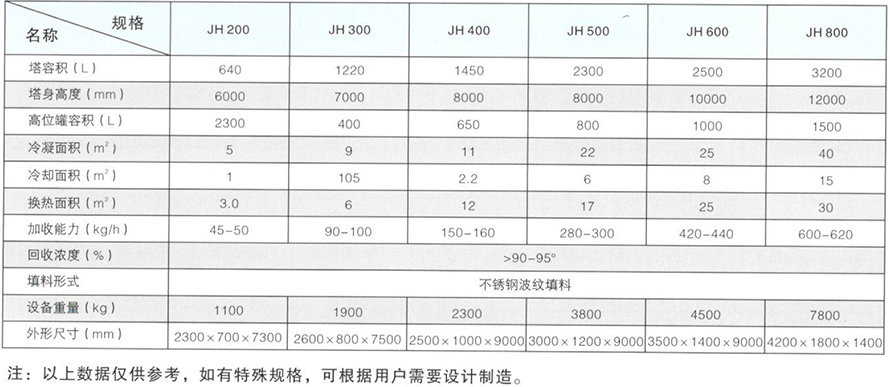

Main technical parameters
