Product Description

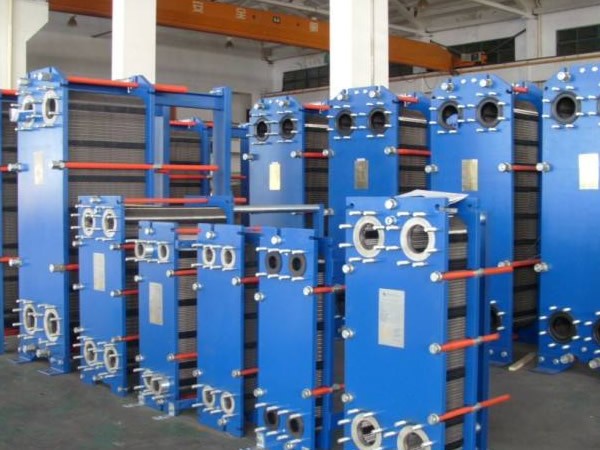

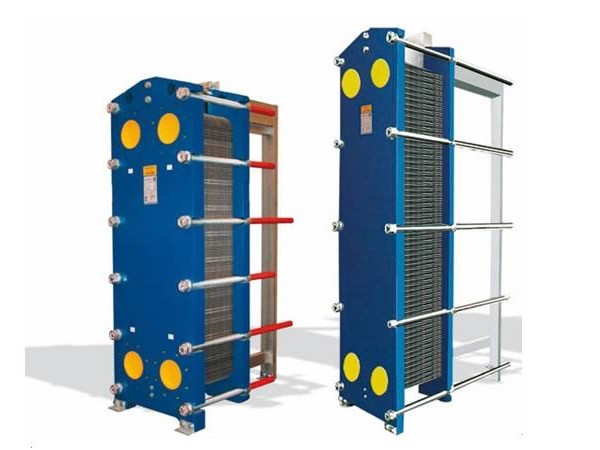

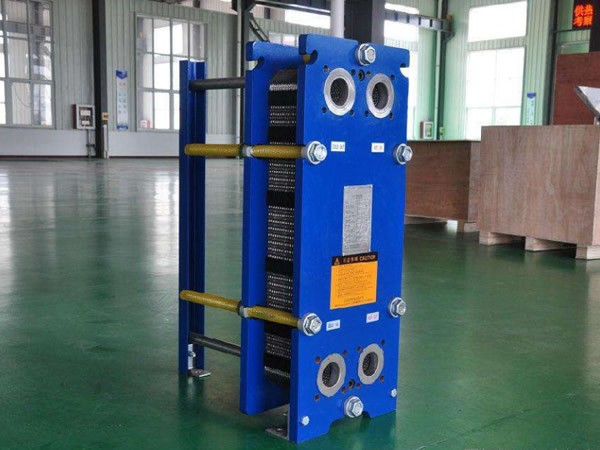

       The heat exchanger is composed of a set of corrugated metal plates with holes for the two liquids that transfer heat to pass through. The metal sheet is installed in a frame with fixed plates and movable compression plates on the sides, and is clamped with clamping bolts. The plates are equipped with sealing gaskets to seal the liquid channels and guide the fluid to alternately flow into the respective channels. The flow rate, physical properties, pressure drop and temperature difference of the liquid determine the number and size of the plates. The chemical properties and corrosion characteristics of the liquid determine the materials of the plates and rubber pads. Different corrugated plate structural designs increase the degree of turbulence and form many support points, which are enough to withstand the pressure difference between the media.
       The metal plate and the movable compression plate are installed on the suspension beam and positioned by the lower guide rod, while the rod end is fixed on the support column. However, if one of the liquids or two liquids passes through the heat exchanger more than once, the interface should be opened on the fixed plate and the movable compression plate.
       The reasonable matching of the corrugation angles of the plates can greatly improve the heat exchange effect per unit heat exchange area, adjust the resistance of the liquid, and save the heat exchange area. As a result, the investment cost is reduced and the investment recovery time is shortened.
       The heat exchanger hasBRseries,BPseries,BTseries,BSseries,There are more than 100 plate types in several series including condenser, evaporator, semi-welded type and fully welded type. Various models have deep corrugations, shallow corrugations, large angles, small angles, etc., which are completely guaranteed to meet the needs of different users. Special working conditions can be specially designed and manufactured according to user needs.

plate material
       Stainless steel:SUS304,316,316L,310S,904
       Titanium and titanium-palladium alloys:TAi,TAi-Pd
       Hastelloy:C276,D205,B2G
       nickel:Ni200
       molybdenum:254MO

Product parameters
       Pressure range: no greater than2.5MPa
       MaxProcessing capacity:1500㎥/h
       MinProcessing capacity:1㎥/h
       Assembly area range:800㎡
       General range of temperature:-50——350℃
       Maxinterface:DN350
       Mininterface:DN32
       Heat load:10MW
       Plate thickness:0.5——0.8mm
