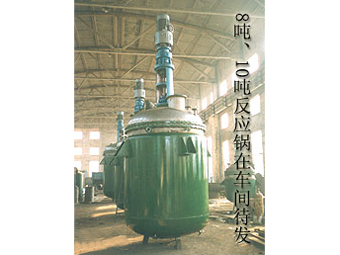

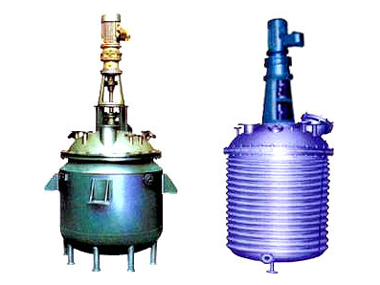

The stainless steel reaction pot produced by our factory (heated by electricity, steam, thermal oil) consists of a pot lid, cylinder body, jacket, agitator, shaft seal transmission device and support. The pot body and parts in contact with the materials in the pot are made ofOCr18Ni9or1Cr18Ni9TiMade of stainless acid-resistant steel plate.

Electrically heated stainless steel reaction pot

Nominal capacityL	Electric heating power	Inner pot diameterφmm	Jacket diameter φmm	Reducer model	electric motor n/kw	Stirring speed r.p.m
50	4×2 KW	φ400	φ600	BLD 0.8-1	1450/0.8	60-100
100	6×2 KW	φ500	φ700	BLD 1.1-1	1450/1.1	60-100
300	6×4 KW	φ800	φ1000	BLD 2.2-2	1450/2.2	60-100
500	9×4 KW	φ900	φ1100	BLD 3-2	1450/3	60-100
1000	12×4 KW	φ1200	φ1400	BLD 4-3	1450/4	60-100
2000	15×5 KW	φ1400	φ1600	BLD 4-3	1450/4	60-100
3000	15×6 KW	φ1600	φ1800	BLD 5.5-3	1450/5.5	60-100

Steam heating reaction pot

SpecificationL	Inner pot diameterφmm	Jacket diameterφmm	Motor powerkw	Reducer model	Stirring speedr.p.m
30	400	500	0.6	BLD 0.6-1	60-100
50	500	600	0.8	BLD 0.8-1	60-100
100	550	650	1.1	BLD 1.1-1	60-100
150	600	700	2.2	BLD 2.2-2	60-100
200	650	750	2.2	BLD 2.2-2	60-100
300	800	900	3	BLD 3-2	60-100
500	900	1000	3	BLD 3-2	60-100
800	1100	1200	4	BLD 4-2	60-100
1000	1200	1300	4	BLD 4-3	60-100
1500	1300	1400	4	BLD 4-3	60-100
2000	1400	1500	5.5	BLD 5.5-3	60-100
2500	1400	1500	7.5	BLD 7.5-4	60-100
3000	1400	1500	7.5	BLD 7.5-4	60-100
3500	1400	1500	7.5	BLD 7.5-4	60-100
4000	1500	1600	7.5	BLD 7.5-4	60-100
5000	1600	1700	7.5	BLD 7.5-4	60-100
6000	1800	1900	15	BLD 15-5	60-100
18000	2000	2100	15	BLD 15-5	60-100
32000	3000	3200	37	BLD 37-56A	35-59

        Since users have different production processes and operating conditions, the jacket heating types are divided into electric heating rod heating, steam heating, and thermal oil circulation heating. The shaft seal device is divided into packing seals and mechanical seals. The mixing types include anchor type, paddle type, pot wheel type, push type or frame type. The number of openings, specifications or other requirements can be designed and produced according to user requirements.
