Working principle
       Drum flaking is a cooling crystallization process. The molten material liquid in the material tray contacts the cooling drum, forming a material film on the surface of the drum. Through the heat exchange between the material film and the drum wall, the material film is cooled and crystallized. The crystallized material film is scraped off by a scraper and becomes a flake product.
       Drum drying is a continuous operation equipment that uses a rotating drum to heat and dry the liquid phase material or strip material attached to the outer wall of the drum through heat conduction.

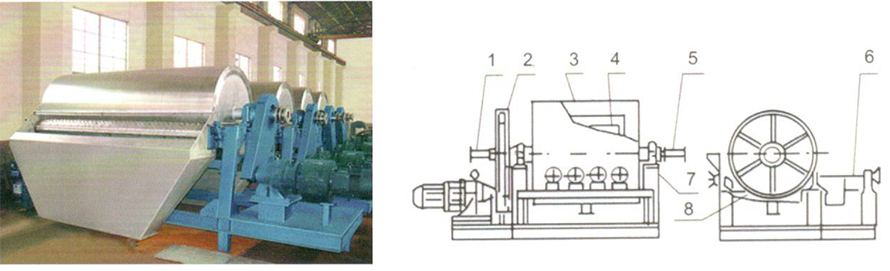

Structure introduction
       1, water inlet
       2, drive part
       3, rotating drum
       4, cooling system
       5, water outlet system
       6, scraper system
       7,frame
       8, material tray

Equipment features
       ● Performance reaches equipment level
       ● Equipped with side scrapers to avoid end material on the side of the drum
       ● The equipment has compact structure and small floor space.
       ● Half-pipe jacketed material tray, safe and reliable
       ● Atomization cooling, good cooling effect
       ● Continuously variable speed, adjustable drum speed
       ● High precision of rotating drum
       ● Wide adaptability, Easy to operate and flexible
       ● Adopt multiple scrapers for flexible adjustment
       ● Multifunctional, can be used for both flaking and drying

Application scope
       1, knotted pieces
       Polyethylene oligomers, petroleum resins, oxidized polyethylene and other polymer products
       Phthalic anhydride, maleic anhydride, Qi, Pingpingjia, higher fatty alcohol, chloroacetic acid, trisulfide*methyl
       Propane, guanidine nitrate, bisphenol, isophthalic acid and other organic chemical products
       Inorganic chemical products such as alkali sulfide, caustic soda, sodium hydrosulfide, calcium chloride, etc.
       2,dry
       Slurry dyes such as vulcanization table and sulfide element
       Sodium dihydrogen carbonate, sodium phosphate, magnesium chloride and other inorganic solutions
       Skim milk, milk and other food solutions

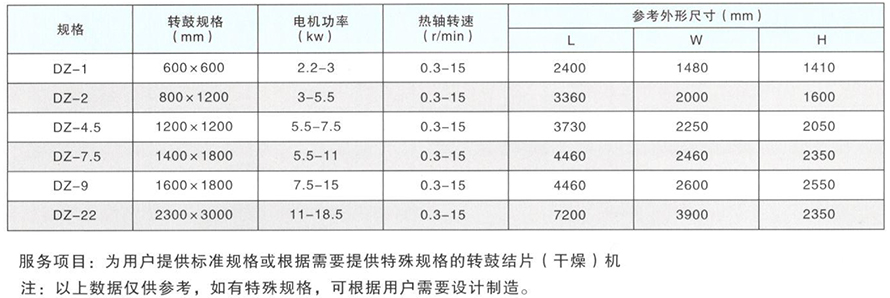

Equipment specifications and main parameters
