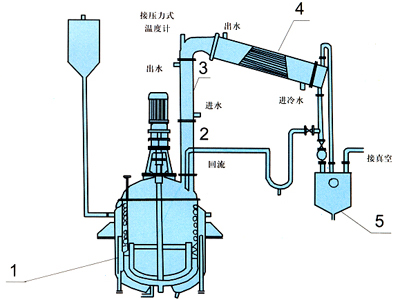

| serial number | Part name | Volume and size | |||||||
| 1 | ReactorL | 50 | 100 | 300 | 500 | 1000 | 2000 | 3000 | 5000 |
| 2 | Vertical fractionating column | DN70×460 | DN100×500 | DN150×560 | DN150×750 | DN200×790 | DN200×1000 | DN250×1200 | DN300×1200 |
| 3 | vertical condenserM2 | 0.01 | 0.19 | 0.22 | 0.49 | 1 | 1.5 | 2.5 | 5 |
| 4 | vertical condenserM2 | 0.29 | 0.58 | 1.5 | 2.08 | 3.17 | 5 | 12 | 20 |
| 5 | Shrink irrigationL | 8 | 30 | 50 | 60 | 100 | 120 | 198 | 300 |
| 6 | dilution kettleL | 100 | 200 | 500 | 800 | 1500 | 3000 | 4500 | 7500 |
