Main purpose
        It is mainly suitable for the concentration of liquid materials in pharmaceutical, food, chemical and other industrial sectors. And it can also recover alcohol and simple reflux extraction.
structure

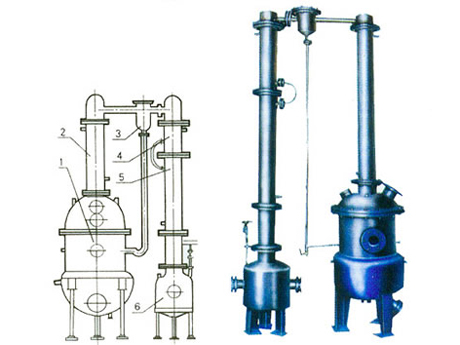

        This equipment mainly consists of six parts: concentration tank, condenser, vapor-liquid separator, second-type condenser, cooler, and liquid receiving barrel. It is made of stainless steel. The concentration tank is a jacket structure, the condenser is a tube type, and the cooler is a coil type.

Main technical parameters

	50	100	200	300	500	700
steam pressure Mpa	≤0.15	≤0.15	≤0.15	≤0.15	≤0.15	≤0.15
Vacuum degree mmHg	≤700	≤700	≤640	≤640	≤600	≤600
Heating area m2	0.4	0.59	0.8	1.1	1.45	1.8
Condensation area m2	1.2	1.7	2.45	3.0	3.2	3.6
cooling area m2	0.25	0.35	0.4	0.6	0.7	0.85
Heating tank volume L	15	45	60	76	100	125
Equipment net weight	~350	~450	~550	~650	~800	~1000
Overall dimensions long×Width×high mm	1200×600×2200	1350×750×2200	1700×800×2700	1700×1000×3400	2100×1200×3400	2400×1300×3400
